Description
PU Industrial conveyor timing belts AT5/10/20 HTD STD
NOTE:We have our own R & D department, we can according to customer drawings and samples to desig
We are factory , we can make sample fast , an professional in timing belt, good
quality and good price
My whatsapp:0086-18029770786
PU Industrial conveyor timing belts AT5/10/20 HTD STD
XL H L XH T5 T10 T20 AT3 AT5 AT10 (AT20) of ladder type tooth synchronous belt
Arc tooth synchronous belt S3M S5M S14M 3M 5M 8M 14M S20M 20M S8M
RPP5M RPP8M RPP14M RPP20M toothless P3 toothless P4 without teeth P2
5 polyurethane ring synchronous belt
MXL AT10 XL XH XXH T5 T10 T20 AT3 T2.5 AT5 (AT20) in the ladder type tooth synchronous belt
Arc tooth synchronous belt S3M S5M S14M 3M 5M 8M 14M S20M 20M S8M
5 double tooth synchronous belt: symmetrical tooth double side tooth synchronous belt with the wrong tooth double side tooth synchronous belt
6 special processing synchronous belt

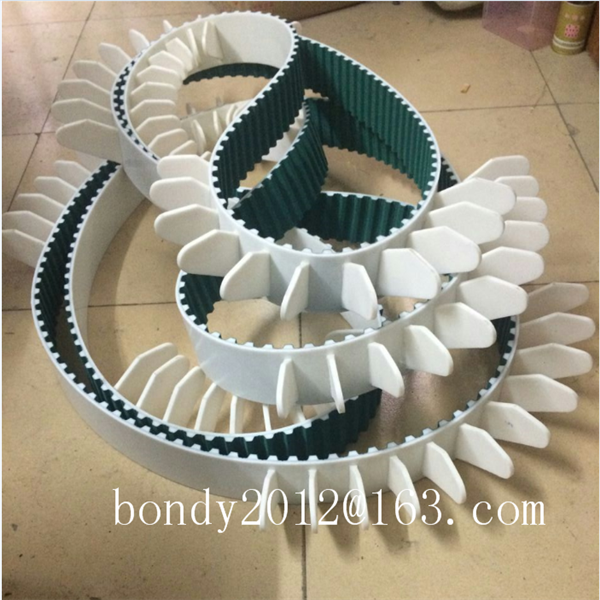

Tooth surface with green cloth (can reduce noise), the surface with red glue (1mm-12mm), surface plus PU (1mm-4mm)
Synchronous belt drilling, synchronous belt with antimony teeth, synchronous belt with the guide bar, the surface of the tape faster
Company business philosophy: to the quality of deposit! Innovation and development! In good faith to win the market!
| MODEL | PITCH | TOOTH HEIGHT | BELT THICKNESS | ANGLE |
| XL | 5.08 | 1.27 | 2.3 | 50 |
| L | 9.525 | 1.91 | 3.6 | 40 |
| H | 12.7 | 2.29 | 4.3 | 40 |
| XH | 22.225 | 6.35 | 11.2 | 40 |
| XXH | 31.75 | 9.35 | 15.7 | 40 |
| T5 | 5 | 1.2 | 2.2 | 40 |
| T10 | 10 | 2.5 | 4.5 | 40 |
| T20 | 20 | 5 | 8 | 40 |
| AT5 | 5 | 1.2 | 2.7 | 50 |
| AT10 | 10 | 2.5 | 5.50 | 50 |
| AT20 | 20 | 5 | 8 | 50 |
| CEAR CODE | TYOE | PITCH | TOOTH TEIGHT | ANGLE |
| HTD | 3M | 3 | 1.17 | 2.4 |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6 | |
| 14M | 14 | 6.02 | 10 | |
| 20M | 20 | 8.4 | 13.2 | |
| STD | 3M | 3 | 1.14 | 1.9 |
| 5M | 5 | 1.91 | 3.4 | |
| RPP | 5M | 5 | 1.95 | 3.5 |
| 8M | 8 | 3.2 | 5.5 | |
| P | 2 | 2 | 0.76 | 1.36 |
| 3 | 3 | 1.15 | 1.9 |
